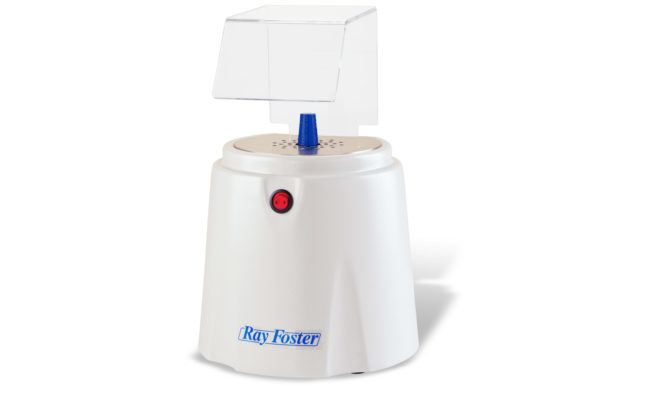

Model Arch Trimmer (Ray Foster)

Model MR20
Model Arch Trimmer

Features

• Large, stainless steel work surface with generous venting for dust removal

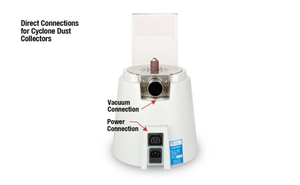

• 1-1/2” (38mm) hose connection, connects directly to 1-1/2” vacuum hose, no need for adaptors
• Power output connection for automatic on/off of dust collector
• Safety switch disconnects power when top is removed
• Comes with fast cutting, non-clogging, SaburTooth Carbide Burs, one cylinder and one taper, course grit
• Complete trimming system available by ordering with CDC1 Cyclone Dust Collector, order item MR20C

Specifications

• Diameter 9" at base
• Height to work surface 8-1/4” (210mm)
• Overall height w/safety shield 13” (330mm)
• Net weight 10-1/2 lb (4-3/4 kg) Shipping weight 12 lb (5-1/2kg)
• 115 volt, 60 Hz standard
• 230 volt, 50/60 Hz optional for export

Manual
